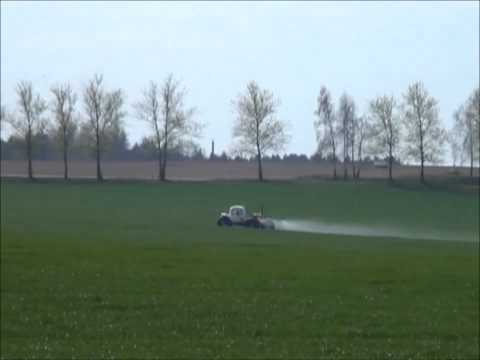

Self-propelled sprayer on low pressure wheels rosa
-
Options
Basic model OPSH " ROSA " ( Basic model OPSH 000 "DEW " ) and modification
Type
semitrailer
Productivity per hour of shift time , ha
16-23
Operating speed, km / h
18-27
Specific fuel consumption for the replacement operation, kg / ha less than
0.2
Capacity primary receptacles, l
600
Maximum load , kg
1000
Track width , mm
2150
Clearance ( Agrotechnical clearance), mm not less
400
Installation height spray nozzle relative to the reference surface of the sprayer , mm:
- Top position
1350-1450
- Lower position (with extensions )
650-750
The range of application rates of the working fluid , l / ha
30-100
Deviation of the actual application rate per hectare on the set ,% not more
± 10
Uneven flow of the working fluid between the nozzles on the boom widths ,% not more
± 5
Uneven making the working fluid (deposition of the drug ) in working width ,% not more
± 10
Weighted median - diameter of drops' traces, mm
100-300
Density of treated surface coating droplets pcs . / Cm, at least
30
Working Kirin capture , m
20 *
Mass (constructive ) kg , not more than
- The unit as a whole ( with the sprayer power unit )
1500
- Proper sprayer
450
Range of working pressure , MPa
0.1-0.8
Step install dispensers mm
500
Pump capacity l / min, at least at the rated speed of 540 rev / min
100-200
The base model OPSH "ROSA" - a semi-trailer field boom sprayer, providing a dose of making the working fluid in the range of 30-230 l / ha, which includes:
- Pump V-203 Imovili
- One 600 liter capacity
- Two sets of wheels of low pressure in the collection (12 pieces)
- Set of slotted nozzles- Set of injector nozzles snosoustoychivyh
- Set of nozzles for liquid fertilizer such as "rain"
- APP
High efficiency of small-volume technology of making plant protection products (doses of 30-60 l / ha, 10-20 ha treatment at the gas station in compliance with the requirements for uniform spray pattern, the number of drops per unit area and the size of the drops) is confirmed by numerous tests.
Spraying ensures introducing a predetermined dose of fluid regardless of the vechle speed in its operating range. This capability reduces fatigue significantly and improves the quality of machine processing fields with difficult terrain and many obstacles , which are associated with multiple repetitive machine maneuvers ( forced acceleration and braking ) .
Diesel fuel savings compared to traditional trailed sprayers aggregated with MTZ- 80, set out on 1 hectare , is not less than 0.5 liters.
Preparation of the working solution and high-speed filling the sprayer provides a mixing and dispensing unit .
Includes HONDA motor pump capacity of at least 500 l / m and capacity of 120l for making " mother liquor ."
The simplicity and ease of the construction ensure easy use in field and the rate of filling the sprayer for 3-5 minutes.
The orientation of the machine on the treated field is based on the use of satellite navigation GPS.
